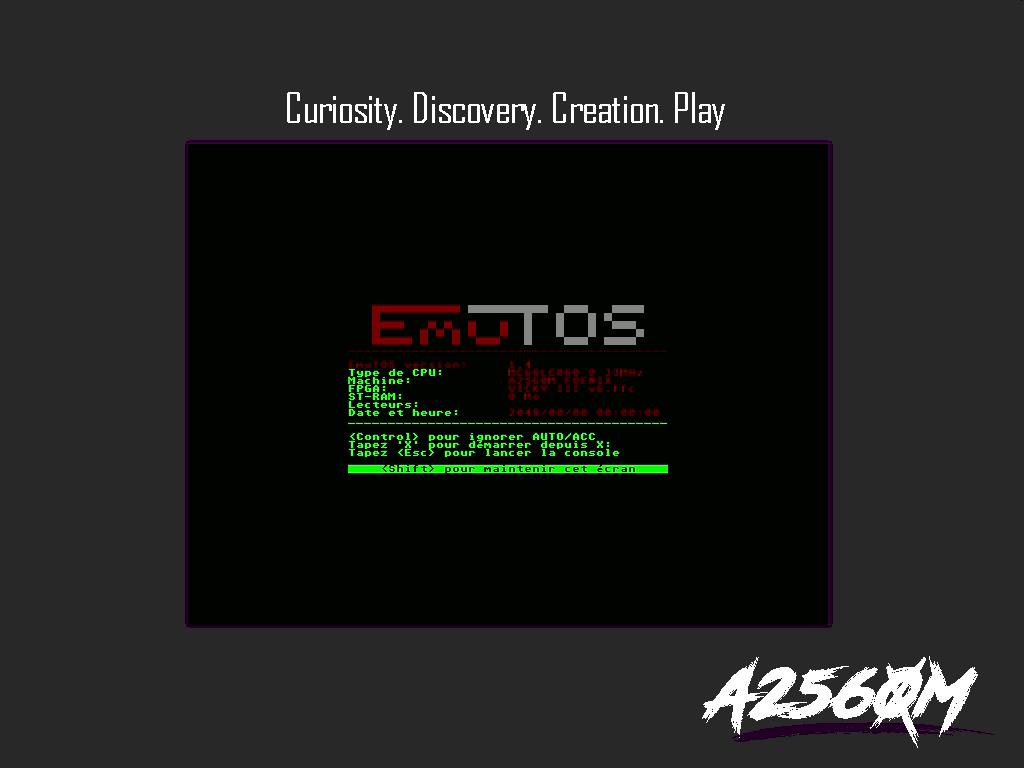

Mini-ITX Form-Factor, MC68LC060 CPU Based New Retro Computer including more recent I/O hardware like PCI Express/USB OTG/DDR3 Memory that will open up a new world of experimentation and creation that will bring one to reconnect with the origin of home computing!
PRODUCT SPECIFICATIONS
A2560M
General Specifications
SYSTEM
32bits CPU
MC68LC060RC66
System General Memory
8MBytes Static RAM (2Mx32)
4MBytes of FLASH (1Mx32)
1GBytes of DDR3 (256Mx32)
Main IO Devices
PCI Express (Gen 2, 4 Lanes)
USB OTG (2x USB Master Port, for KB/Mouse/Dongle)
Internal SD Card On Board
External SD Card
SuperIO (2x Serial, 1x Parallel, MIDI, 1x Floppy)
Ethernet Copper Port (Wiznet W6100)
WIFI Module (Wiznet WizFi360)
2x Atari Style Joystick Ports
2x Analog Joystick Ports
1x Master CODEC @ 48Khz
1x Secondary Audio DAC @ 44K1Hz
1x SAM2695
1x VS1053B
1x DVI Lanes Video Output
2x PS2 Port, KB & Mouse
VIDEO SUB-SYSTEM
Graphics Engine
VICKY III Mark II
Graphics System
To Be Defined
oeSYSTEM MISC
Media
3.5″ Floppy Drive (Optionnal)
External Full-Size SDCard (Need Interface Board)
Internal Micro-SDCard (On board)
Communication Ports
2x Full Support DB-9M RS-232 Ports (COM1/COM2)
1x Full Support DB-25F Parallel Port
1x USB-C Serial Port (COM3)
1x Wiznet W6100 Copper Controller
1x Wiznet Wizfi360 Module (AT Command)
2x USB OTG Ports
Joysticks
2x DR-10 Atari Style Joystick (DR-10 -> DB9 Cable Needed)
1x DR-10 Analog Style Ports (DR-10 -> DB15 Cable Needed)
1x FNX4N4S Mini-Din9 Connector to interface to 4x SNES/NES
Other
1x Mini-Din8 for Future FNX Keyboard
AUDIO SUB-SYSTEM
Standard FPGA Chiptune Chips (always there)
OPM – YM2151 in FPGA
OPN2 – YM2612 in FPGA
Dual PSG – SN76489 in FPGA (Dual)
OPL3 – YM262-M in FPGA
Dual SID – In FPGA
Audio Sampling
Full ADC/DAC CODEC with 6 Inputs
1x Auxiliary DACs @ 44.1Khz
Wavetable Chip & MP3 Playback
1x SAM2695 – MIDI Wavetable
1x VS1053B – MP3/OGG/WAV Playback (with MIDI Wavetable as well)
Supports
8bits/16bits Resolution
Mono/Stereo Mode
Sampling Rate: 48khz/44.1khz*/24khz*/22.05khz*
Memory to DAC SDMA Engine*
Misc
2.5mm IN/OUT MIDI Connectivity*
2.5mm Stereo Line-In for Recording
2.5mm Stereo Line-Out
2.5mm Headphone Output Connector
*: New features that will be integrated.
MECHANICAL SPECS
Enclosure Dimension
170mm x 170mm Standard Mini-ITX Form Factor
Product Weight
TBD
